Titanium Waste Heat Recovery System
2022. 11. Busan International Fisheries Expo exhibited new titanium waste heat recovery machine
Solving the Disadvantages of Plate Heat Exchangers
Solving the problem of Plate heat exchange performance deterioration due to foreign substances during operation
Solve disassembly/washing/assembly problems
Reduced labor cost and increased heat exchange efficiency
No operating cost other than motor electricity cost
Excellent electricity bill reduction effect
Water that was previously wasted was used as a heat source.
November 21, 2022 (Korea-Jeollanam-do)
Demonstration held in the presence of National Institute of Fisheries Science (Director attend)
source : 'yangsig21' January 2023 magazine
What is a waste heat recovery machine?
Generated from exothermic reactions in heating furnaces or industries
equipment that recovers heat.

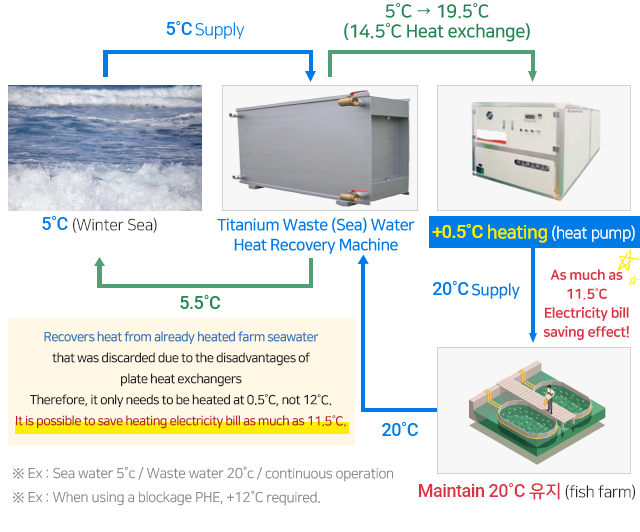

Application case
Abandoned wastewater from seawater farms
recovery of heat
Problem solved! Blockage problem(Clogging) due to contaminants
The circular Ti-Flexible tube does not clogging due to minute vibrations when sea water moves.
Excellent corrosion resistance to seawater!
Titanium has already been proven to be a material with excellent seawater resistance.
Excellent heat recovery rate even in low temperature Fish Farm System
Titanium Waste Heat Recovery System shows a high heat exchange rate even with minute temperature differences.
Recovers a minute temperature of 20'C

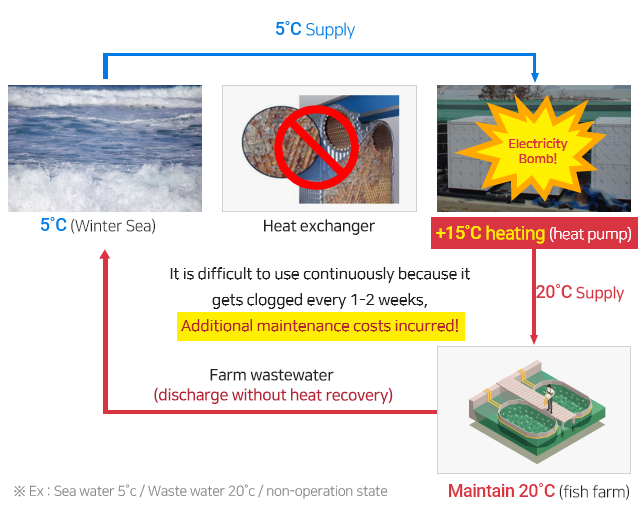

By the sediment Repeat blockage, disassembly,
and assembly have to difficulties in use,
After installation, it is difficult to actually use.
Non-powered The Ti Waste Heat Recovery System
Electricity savings
This product overcomes the disadvantages of existing plate heat exchangers.
Product
Plate heat exchanger products are made of titanium only in some parts,
while product corrosion problems occur,
Titanium Flexible Tube - Waste Heat Recovery System is
all aceessories are also made of 100% Titanium (internal fittings)
Corrosion problem solving and semi-permanent use are possible.
