Tantalum Heat Exchangers: Ultra-High Corrosion Resistance Gaining Attention in the Petrochemical Industry
A Corrosion-Resistant Solution That Reduces Pressure Vessel and Piping Risks in Extreme Chemical Environments
The petrochemical industry is a representative example of an extreme process industry, where high-temperature and high-pressure conditions coexist with repeated exposure to strong acids such as hydrofluoric acid (HF), hydrochloric acid (HCl), and sulfuric acid (H₂SO₄). Under these conditions, heat exchangers do not function merely as auxiliary equipment but operate as critical assets that directly determine process continuity, safety, and profitability. In particular, heat exchangers are often designed as pressure vessel structures and are directly connected to plant-wide piping and spool systems.
As a result, material selection is not limited to the performance of individual equipment but is directly linked to overall plant risk management. Traditionally, various corrosion-resistant materials such as nickel alloys, Hastelloy, and titanium have been applied. However, as processes become more sophisticated and operating conditions increasingly severe, the limitations of conventional materials are becoming more evident. Against this backdrop, tantalum is emerging as a next-generation core material for heat exchangers, drawing renewed attention from the petrochemical industry.

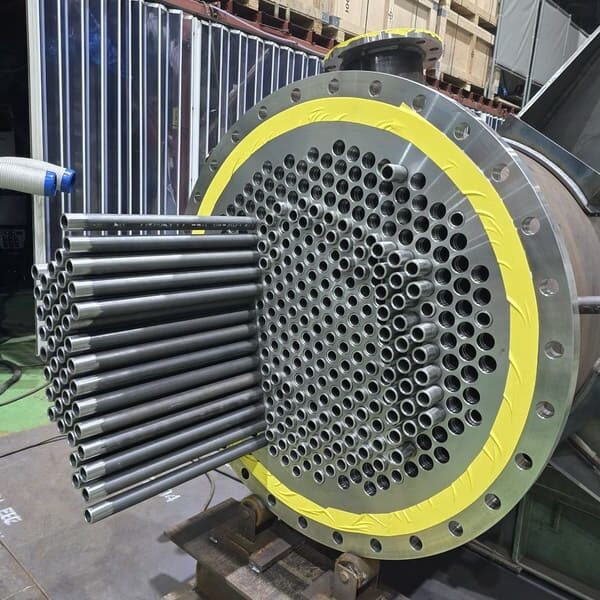

Tantalum Heat Exchanger (Shell & Tube Type)

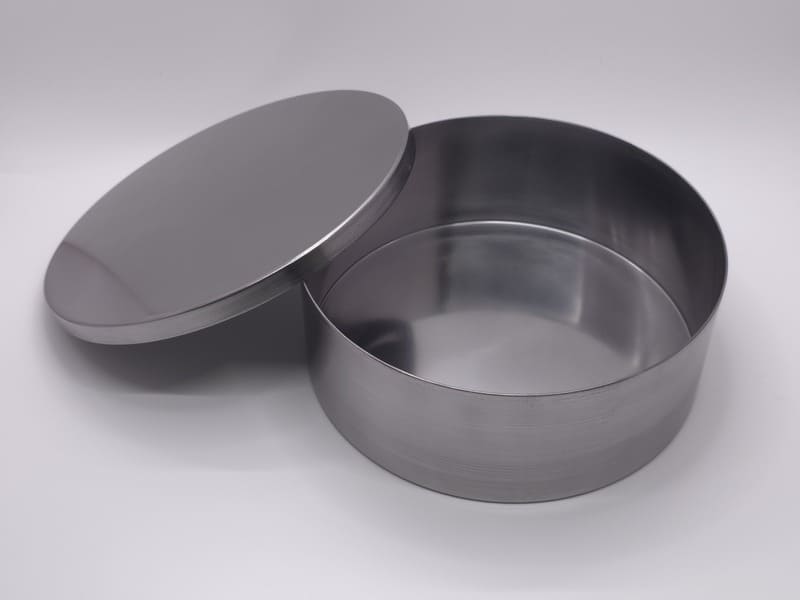

Tantalum Crucible
Absolute Corrosion Resistance Required by Continuous Processes
One of the defining characteristics of petrochemical plants is their continuous operation structure, in which process interruptions are rarely tolerated. Even minor corrosion or leakage at any point within a heat exchanger, pressure vessel, or piping system can immediately lead to an unplanned shutdown.

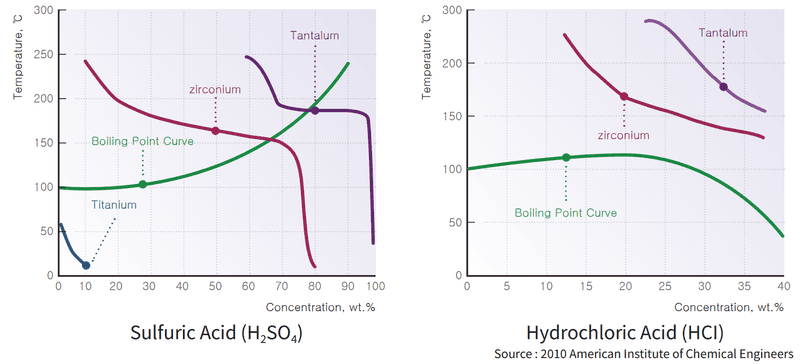

Tantalum maintains outstanding corrosion resistance in most strong acid environments, including hydrofluoric acid, due to the naturally formed tantalum oxide (Ta₂O₅) passive film. In particular, given that very few metallic materials are practically applicable in HF environments, tantalum is regarded as an irreplaceable option.
These corrosion-resistant properties serve as a key condition for securing predictability across pressure vessels and piping systems as a whole.
Tantalum Crucible
Operational Stability Enabled by “Equipment That Does Not Fail”
Most heat exchanger issues that occur in the field arise without warning. They often begin as micro-corrosion or localized damage, but soon escalate into leakage, pressure anomalies, and emergency shutdowns, leading to cascading issues such as piping spool replacement, emergency welding, and delays in process restart.
Tantalum heat exchangers structurally suppress unexpected equipment failures by significantly reducing the likelihood of corrosion-induced performance degradation. This results not only in extended maintenance intervals but also in a reduced operational burden across the entire pressure vessel and piping system.
1) Structural Minimization of Shutdown Risk and Business Loss
Unplanned shutdowns in petrochemical plants are not limited to equipment repair costs alone. They expand into revenue losses due to production stoppages, delivery delays, and deterioration of customer trust. In particular, when issues occur in pressure vessels or major piping lines, entire processes often must be halted.
Tantalum heat exchangers are designed for long-term continuous operation, reducing the probability of process interruption and increasing the predictability of maintenance schedules. From a life-cycle cost (LCC) perspective, this provides a clear economic advantage that exceeds the initial investment cost.
2) Mitigation of Chemical Leakage Accidents and Safety Risks
Leakage caused by corrosion in heat exchangers and piping goes beyond equipment failure and directly leads to risks involving human safety, the environment, and legal liability. Leaks of hazardous substances such as hydrofluoric acid and hydrochloric acid can result in worker injuries and violations of environmental regulations, causing reputational damage that is difficult for companies to recover from.
Tantalum heat exchangers are evaluated as equipment that inherently reduces leakage probability based on structural stability and corrosion resistance, making them a critical safety design criterion in high-risk chemical processes.
3) Not an “Expensive Material,” but a “Risk Management Investment”
Tantalum is by no means an inexpensive material when viewed solely from an initial purchase cost perspective. However, from the end-user’s standpoint, repeated repair and replacement costs, shutdown-related business losses, and safety and environmental risks must all be considered together.
In this context, tantalum heat exchangers are increasingly recognized not as high-priced materials, but as strategic investments for managing pressure vessel, piping, and overall process risks.

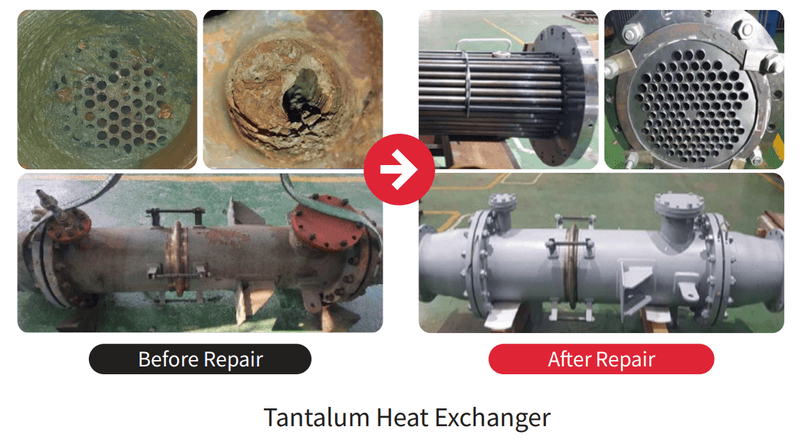

Tantalum Equipment manufacturing Cases Study
ATX’s Role: Experience in Implementing Tantalum as Industrial Equipment
The reliability of tantalum as equipment is not secured by material properties alone. In actual industrial environments, equipment performance is determined by how the material is applied—under what process conditions, in what pressure vessel structures, and with what piping and spool configurations.
ATX does not handle tantalum merely at the level of material supply. It is a special non-ferrous metal specialist with hands-on manufacturing experience in implementing tantalum as real process equipment. ATX has manufactured and supplied tantalum heat exchangers, strong-acid-resistant piping and piping components, and protective tubes for process instrumentation across petrochemical and steel industry sites.
Based on manufacturing infrastructure in Korea, ATX offers competitive pricing compared to European and U.S. suppliers, along with typical lead times of approximately 3 to 6 months. This positions ATX as a practical alternative for global projects that demand high technical standards while also requiring strict control over procurement schedules and costs.
For those seeking to reduce pressure vessel and piping risks in extreme chemical environments, ATX’s experience in the real-world implementation of tantalum equipment represents a viable option.
